Floating Parking Lane Setup

The floating parking lane prototype roadway cafe at Bodrum may be visited at 584 Amsterdam Avenue, Manhattan.

Illustration of a roadway cafe in a floating parking lane, separated by a green bike lane from the curb and restaurant's frontage

Bodrum's roadway cafe in a floating parking lane, next to a green bike lane and buffer markings


Overall Design

Diagram of a floating parking lane roadway cafe with barriers with plants, a blue overhead covering with solar panels and tables and chairsThe Setup Menu prototype at Bodrum is the largest of the four designs, just about reaching the 40 feet maximum length prescribed by the rules.

Located in the Upper West Side within a floating parking lane on Amsterdam Avenue, the design comprises off-the-shelf barriers with custom cladding and a modular overhead covering with solar panels powering the included lighting.

Because of the cafe's location in a floating parking lane, safety and accessibility were a particular focus for this prototype.

Components

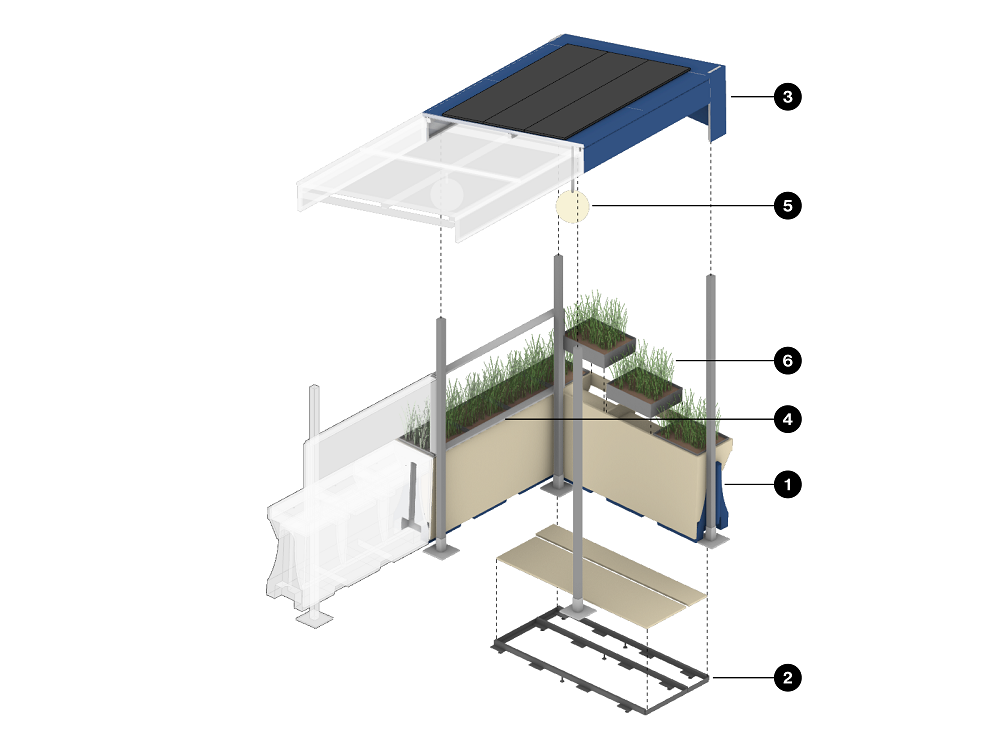

separate components of a floating parking lane roadway cafe are identified on this diagram: barrier, flooring, overhead covering, vertical screening, lighting and electrical, plants

  1. Barrier: Standard Water Barrier with Cladding
    Off the shelf water barrier, clad in Marine Grade Plywood modules and aluminum leveling saddles that fully integrate with the flooring. Shallow planters are also incorporated into the cladding.
  2. Flooring: Metal Frame with Hinged Plywood Panels Panels
    Aluminum Frame with Marine Grade Plywood panels hinged for easy access and cleaning. Floor structure is bolted to the barrier's leveling saddles. A heavy rubber ramp customized to the site provides access from the roadway to the dining area.
  3. Overhead Covering: Aluminum Posts and Vestibule Panels Canopy
    Aluminum posts are fastened and level to the floor structure. Overhead coverings and screenings are made of lightweight vestibule fabric panels.
  4. Vertical Screening: Clear Panels
    Clear panels along the roadway edge provide concealed space while preserving visibility.
  5. Lighting and Electrical: Solar Powered with Portable Battery Pack
    Solar panels are placed with optimal exposure to charge a battery connected to the globe pendant lighting and linear accent lighting along the planter. This can be disconnected and charged inside restaurant if needed. Battery powered table lighting is also provided.
  6. Accessory: Planters
    The barrier cladding modules accommodate planters on three sides of the cafe.

Fabrication

Process included a full mockup of the setup in SITU Fabrication's shop. Fitting cladding on off-the-shelf barriers required ordering, measuring, and adjusting modules.

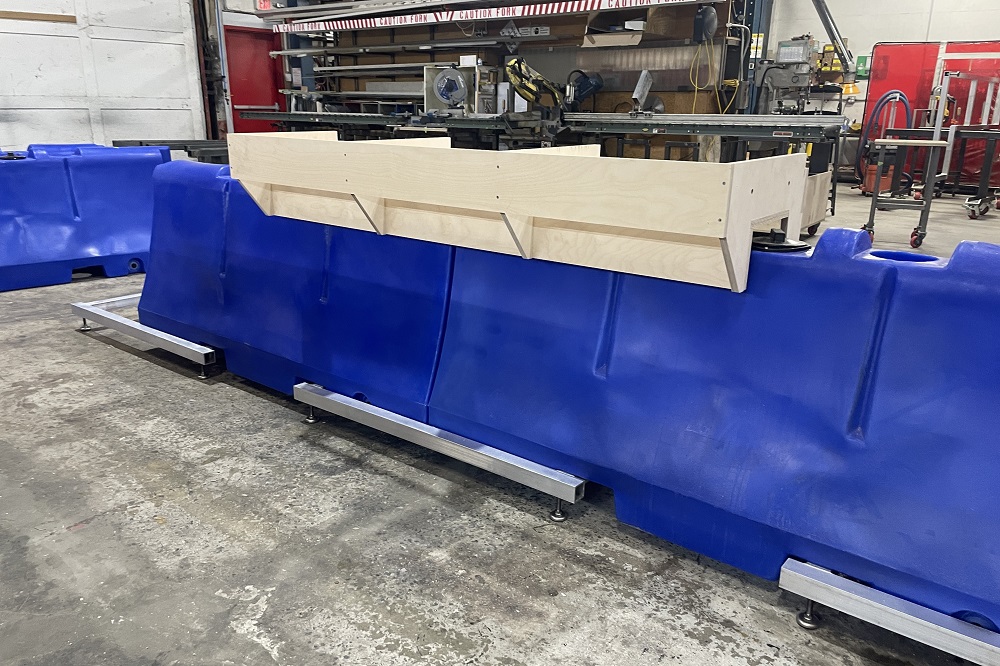

Fabrication of blue barriers with a planter frame on top

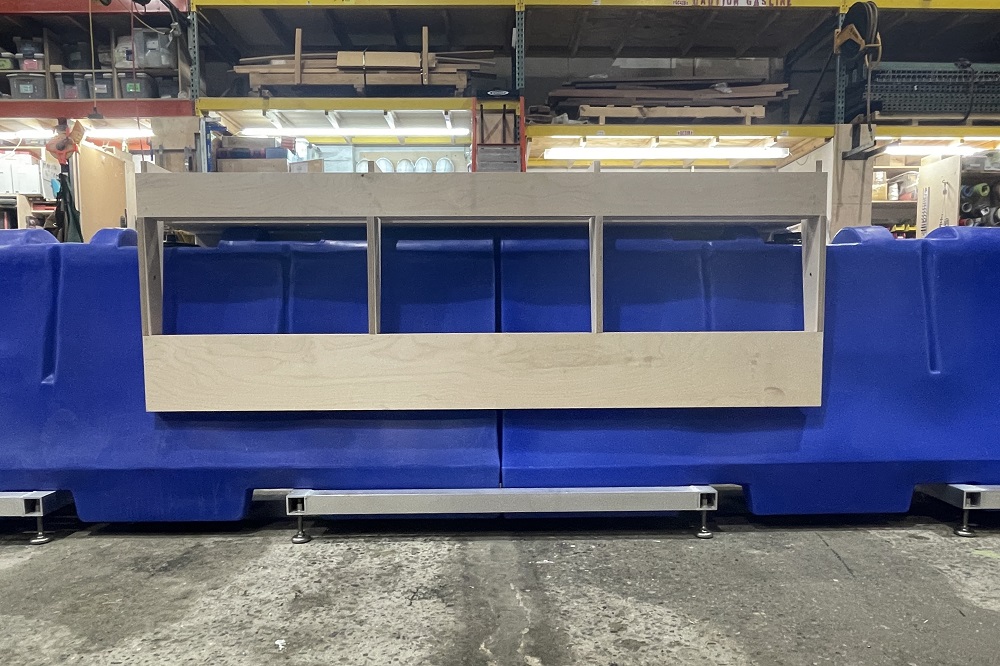

A view of a planter on top of a blue jersey barrier



A person builds a metal frame for the floor of a cafe

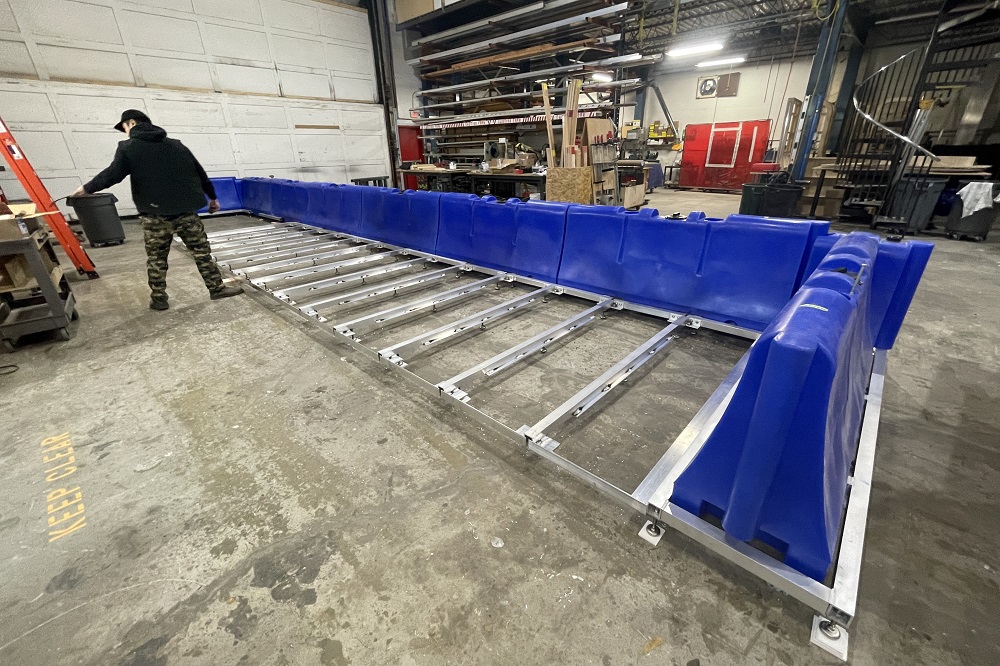

Inside a studio a person assembles barriers on top of a metal frame



Installation

Installation involved leveling of saddles and placement of barriers and cladding, followed by flooring support. Overhead covering followed with the solar installation to flexibly power the cafe.

Solar panels on top of an outdoor cafe's overhead covering



A team assembles a floating parking lane barrier on a street with snow



A view from the roadway of the floating parking lane prototype with vertical panels between the roadway and cafe dining area



The fully assembled floating parking lane roadway cafe for Bodrum



Lessons Learned

Using an off-the-shelf water barrier was helpful for the long length of this cafe but the team needed to design around the barrier to provide a custom interior environment. Ordering in advance and measuring of the actual product was key as certain dimensions were approximate. The cladding fully clips over the top and is linked to the flooring system but does not puncture the water barrier.

The overhead covering was coordinated to be placed on the interior of barriers and was able to match, in color and branding, the existing sidewalk cafe. Working with a vestibule manufacturer the team coordinated phased installation and secure attachments to the cladding and flooring. Using a standard plywood panel flooring, addition of grit to the final finish was key to slip resistance.

For accessibility, there were multiple options of how to cross the bicycle lane including from the nearby corner. To provide flooring in the setup and work around the existing manhole, part of the setup is at grade and the majority uses flooring, transitioning with a rubber ramp. Through discussion with the restaurant the team added panels on the bicycle lane edge of the setup to channel the crossing to one location to minimize conflicts.

Evaluation is ongoing this spring and the team will post updates in early April based on performance and feedback collected throughout March. This will include an update to the design resources below.

Design Resources

Disclaimer

The City has made available for download location specific drawings from the Dining Out NYC Setup Menu Prototype project that were prepared by a registered design professional. These location specific drawings have been made available for informational purposes only. The drawings are provided as-is, and the City of New York disclaims to the greatest extent permitted by law any and all warranties in connection with them.

Each drawing was designed and developed for a specific prototype location and may not be appropriate for other locations. Every location has unique features and site conditions, so make sure that every outdoor dining setup component you choose is appropriate for your sidewalk or roadway cafe.
